Oggetto numero.:
LD-Y607Pagamento:
TT / LC / Paypal / Western UnionOrigine del prodotto:
ChinaColore:
SliverStock di merci:
100Porto di spedizione:
Guangzhou / Shenzhen PortTempi di consegna:
7-10 DaysEntrata del tornello con barriera a falda automatica ottica

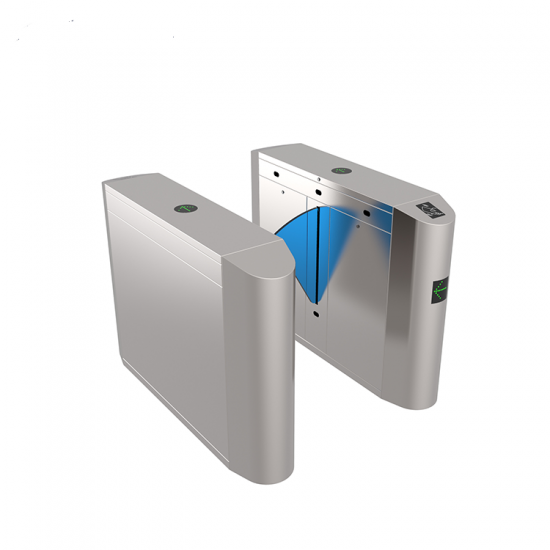

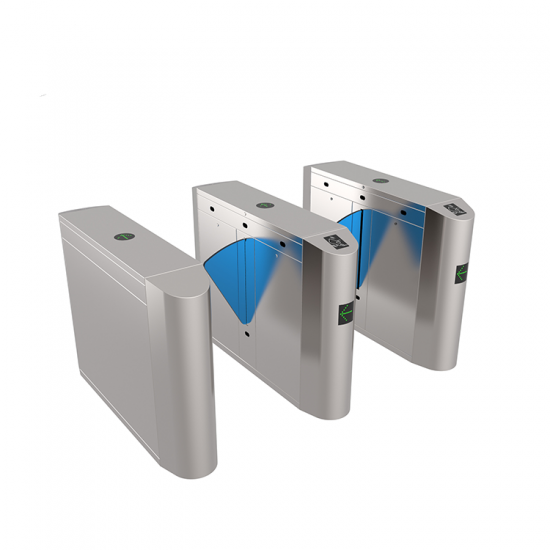

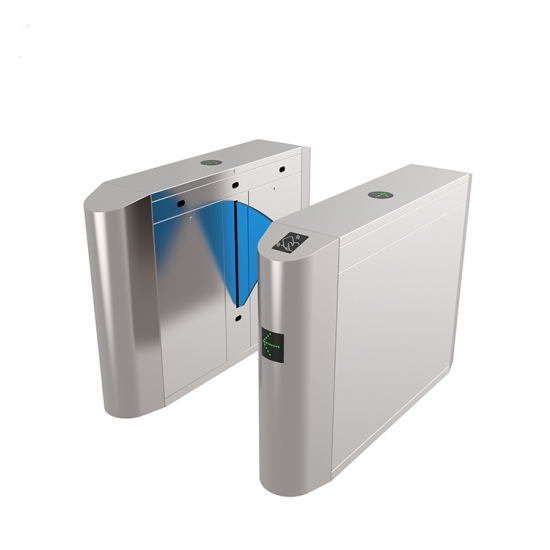

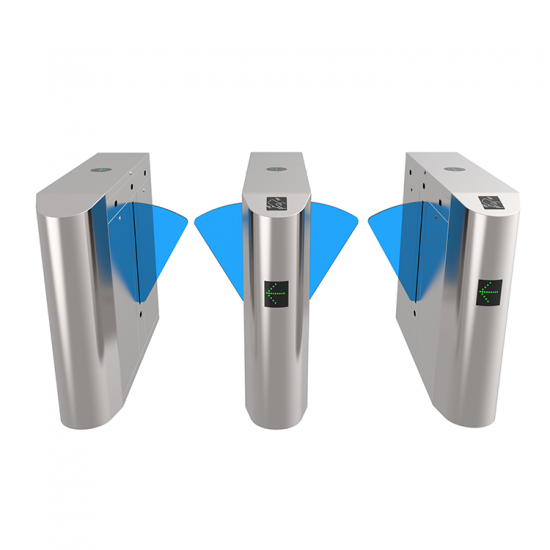

The flap barrier turnstile consists of 304 stainless steel cabinet and acrylic baffles (Could be customized logo or color) - meant to control pedestrian flow. Universal system with English version and could be used globally. An input device triggers the flaps to open or retract.
The input device can be different methods as per customer demand - Fingerprint scanner, RFID card reader, Card dispenser, or coin acceptor. The flaps are integrated with safety sensors to prevent damage to the pedestrians and avoid tailgating.
Parameters:
Model No. | LD-Y607 |
Misurare | 1200*280*980 mm |
Materiale | 304 stainless steel, PU |
Lane width | 600 mm |
Spessore dell'alloggiamento | 1,2 mm/1,5 mm |
Motore di azionamento | DC 24V |
Tensione di ingresso | AC 100V - 230V, 50-60HZ |
Passing speed | 30-35 people / minute |
Opening signal | Contatto secco |
Life | 5 milioni di volte; |
Features:
1. LED directional indicator on top and front post.
2. La copertura esterna ha una finitura liscia e nessuna vite a vista.
3. La direzione della corsia può essere impostata su un'unica direzione o passaggio bidirezionale e cambiare facilmente la modalità NC o NO per esigenze diverse.
4. Anti-reverse function, the device can audible alarm if someone wants to enter in the reverse direction.
5. The infrared sensor will alarm and the LED light will flash to prevent pinch pedestrians.
6. In case of emergency, the baffles will retract automatically connecting with the battery or capacitor (If necessary) to allow free passage.
7. It can be integrated with all access control systems (e.g.: RFID card reader, button control, Fingerprint and face recognition with temperature detection).
8. Automatic delay reset process 5 seconds after receive signal (allow to setting 1-60 seconds).
